Description
Portable SPC-M-2*35W portable solar panel and the latest generation of new small junction box. The 70-watt portable solar panel is one of the newest models in the series, and one of the most powerful, foldable solar panels currently available. It has a 2-sided construction and comes with a suitable cable kit with which you can quickly and easily establish connections to small energy storage and batteries to be recharged.
High quality and high conversion efficiency
The folded solar panel is made of stronger quality material, 2 high-quality monocrystalline silicon cells provide a high conversion efficiency of 22.62%, and the charging speed is faster by connecting multiple panels in series or parallel. Portable power station and 12v battery in the sun provide endless fun, save electricity bills and protect the environment.
Portable & Lightweight

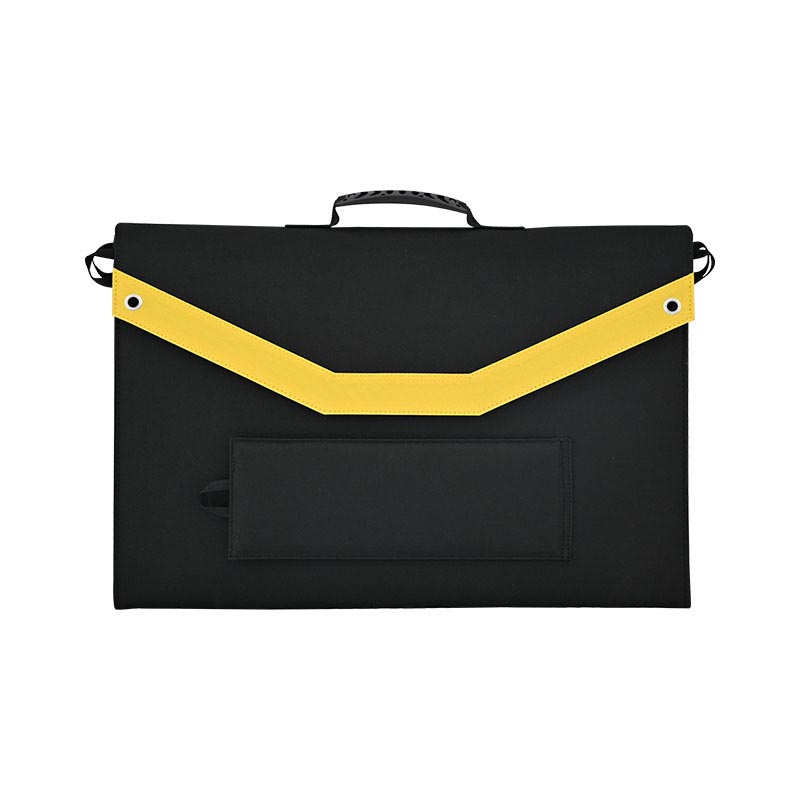

Foldable only 22.24x21.65x0.59 inch and 6.17 lbs design. You can put it into our carry bag. Ultra lightweight easy to carry and Easy to store so that it can be used anytime and anywhere.
High Compatibility
Compatible with the mainstream brands of portable power station Jackery/Ecoflower/Goal Zero on the market, using standard solar connectors, you can easily connect multiple panels in series or parallel for more power.
When tomorrow turns in today, yesterday, and someday that no more important in your memory.
When tomorrow turns in today, yesterday, and someday that no more important in your memory.
| Maximum power(Pmax) | SPC-M-2x35W |
| Open-circuit voltage(Voc) | 23.3V |
| Voltage at Pmax(Vmp) | 19.8V |
| Short-circuit current(Isc) | 3.82A |
| Current at Pmax(Imp) | 3.53A |
| Cells efficiency(%) | 22.62% |
| The maximum system voltage | 100V DC(IEC) |
| Power temperature coefficient | -0.43%/℃ |
| Voltage temperature coefficient | -0.34%/℃ |
| Current temperature coefficient | 0.05%/℃ |
| Output power tolerance | ±3% |
| Operating temperature | -10~60℃ |
| Solar cell | Monocrystalline solar cells |
| Weight | 4.63 lb |
| Unfold size | 37.20*21.65*0.118in |
| Folded size | 21.65*14.76*0.59in |
| No.of cells and connections | 12(3*4) |
| Product configuration | DT2U05 Solar Junction Box | Output: Double USB, DC interface, one Type-C |
| Packing | Bubble bag, one set into 1 full-wing carton, 10 pcs in an outer carton |
Q:How many solar panels do I need to run an RV?
In most cases, the more the merrier, however an excessive amount of solar panels can actually waste energy. We recommend installing around 300 Watts of solar panels on the roof of an RV, which is generally around 3 flexible solar panels. This obviously depends on the battery size, but multiple solar panels can work to charge other aspects of the RV such as an air conditioner.
Q:Do flexible solar panels work in rain?
Most flexible solar panels are waterproof to work efficiently in extreme weather conditions. This is due to secure PET lamination. These solar panels also feature a non-stick coating on the surface, meaning that they are self-cleaning in the rain. This is when solar panels actually benefit from rainwater, as it helps to clean dirt or debris.
