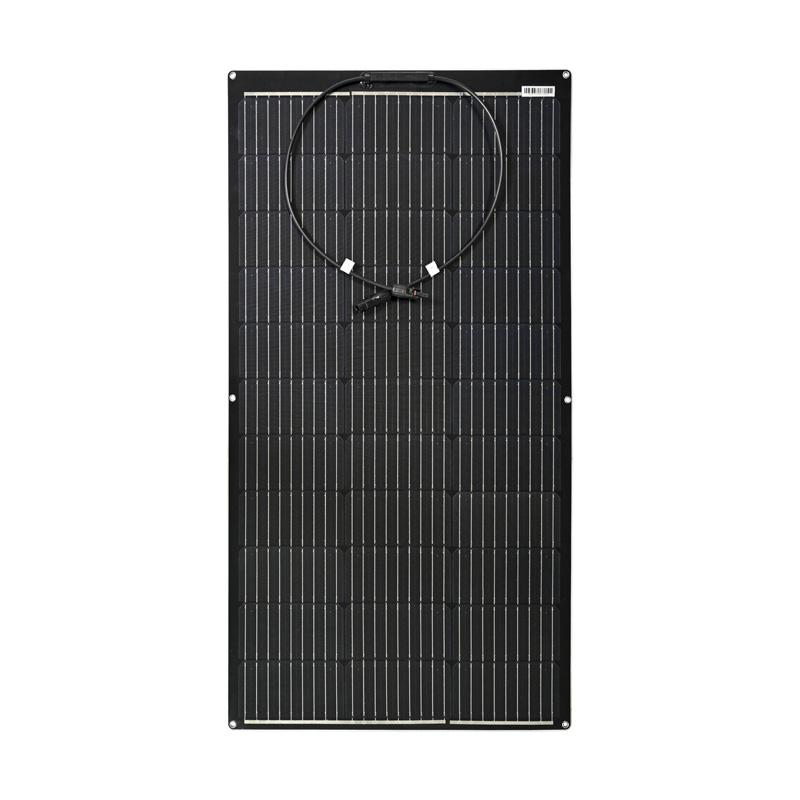

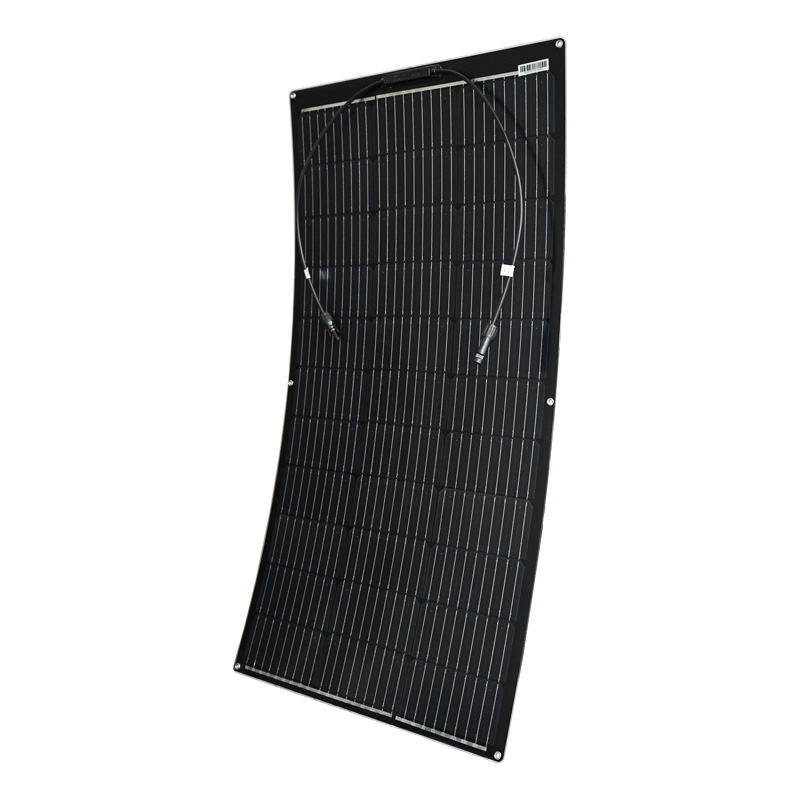

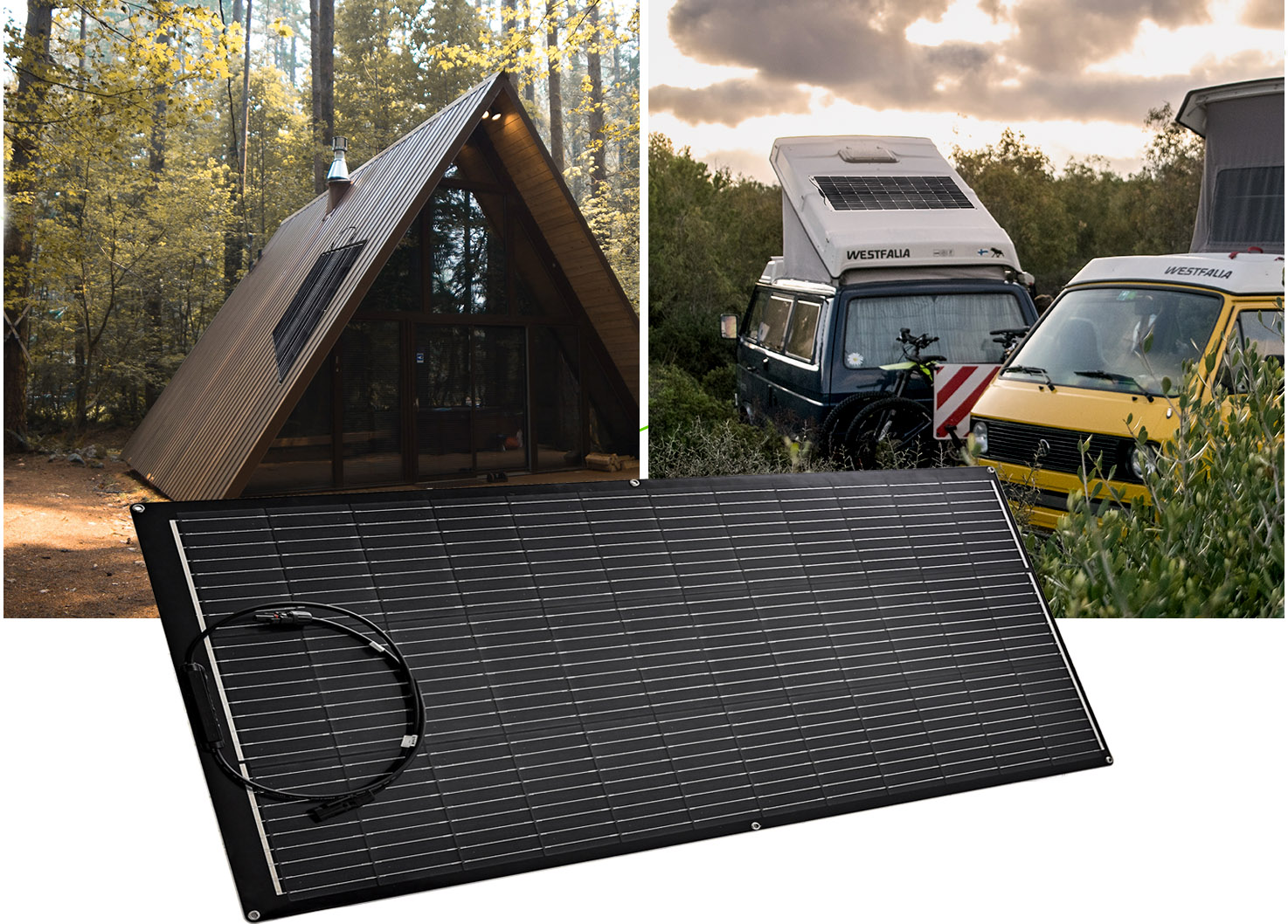

Sungold® FP-100w Flexible Solar Panels
Sungold® FP-100w Flexible Solar Panels

Sungold® FP-100w Flexible Solar Panels

  • Brand: Sungold
  • Cells Efficiency :21.1%
  • Cable:500mm/4mm²
  • Size: 1080*540*3mm
  • Weight: 5.5lb
  • Brand:

    SUNGOLD

Description


FP series 100W is a very strong and durable lightweight solar panel, which is 70% lighter than traditional glass solar modules, and will use high-efficiency mono 166 solar cells to improve electrical performance and power generation efficiency, which is comparable to these cells. Combined is the Ray surface material developed by the  using extremely durable materials. Due to its non-slip profile, it transmits more light than ordinary glass. Because of this profile, the solar cell captures more light at low sun angles. Leads to higher daily energy production.

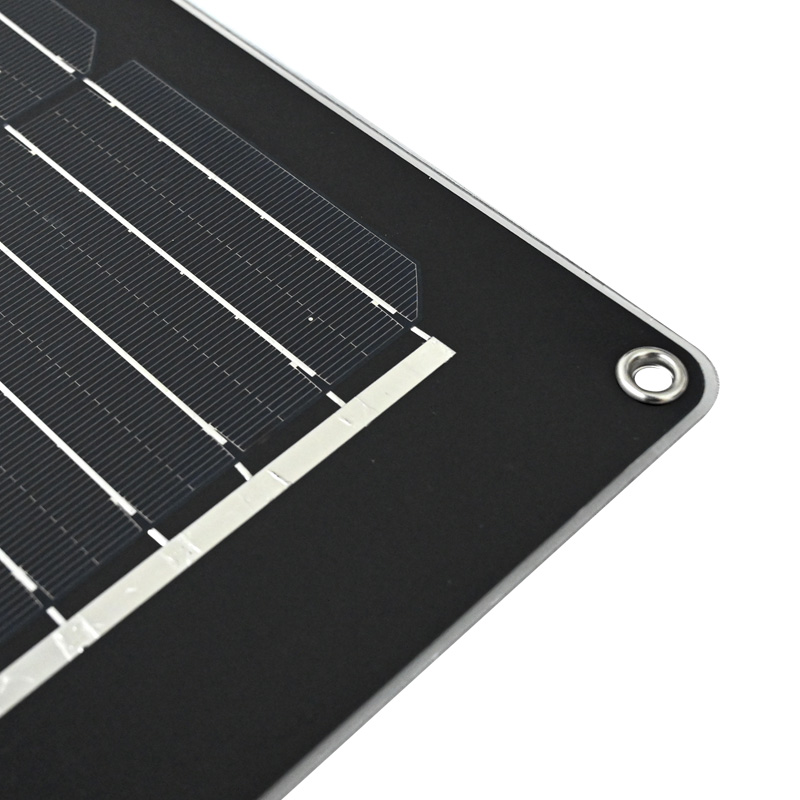

Comes with pre-drilled mounting holes, solar connectors and junction box for easy and fast installation. It is the perfect choice for any off-grid solar system, especially for transportation applications such as RVs and boats.

  •  Black panel design



    Specifically designed for the best possible integration into the surface on which they are installed. Due to the darker color, the black solar panel is ideal for even colored surfaces. As long as there are high aesthetic requirements for the appearance and design of the device.

  • Ultra-lightweight



    Ultra-lightweight Thanks to the use of advanced polymer materials, the product is 70% lighter than conventional solar panels, making transportation and installation a breeze. Weight: 2.5kg/5.5lbs



3 core reasons for choosing products

Flexible Solar Panels are lightweight and portable, so you can take them on your next outdoor adventure.


  • #

    flexible
  • #

    durable
  • #

    Lightweight
Application solutions

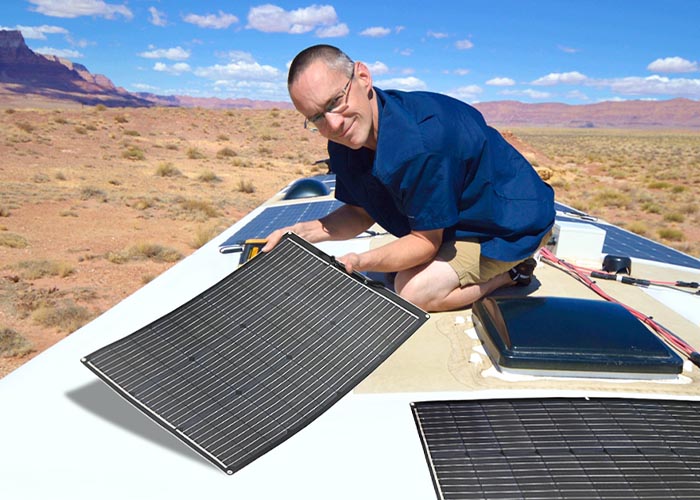

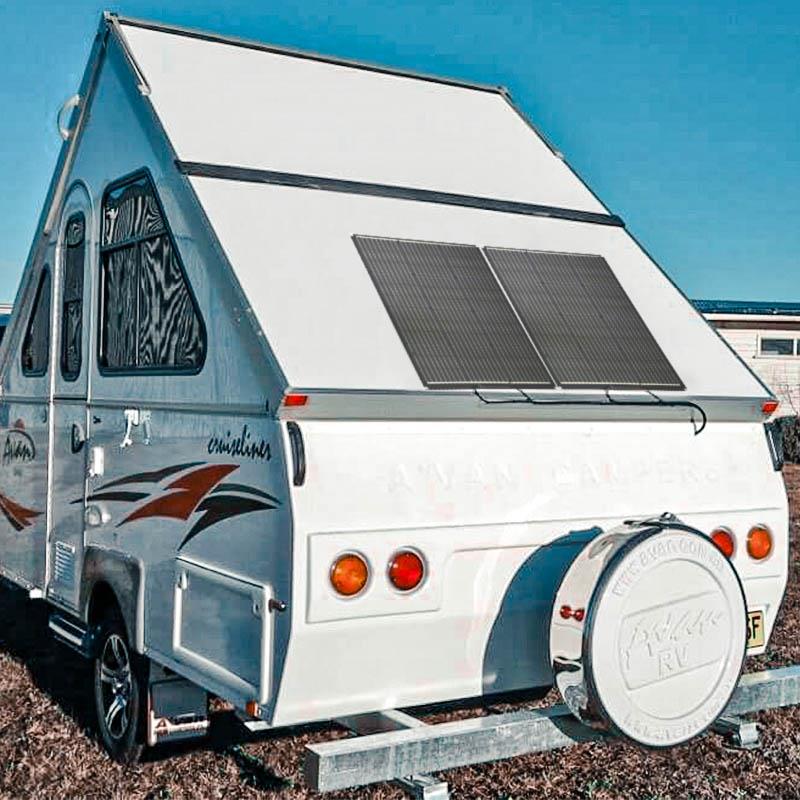

It's a black solar panel that can be installed anywhere on your yacht or RV. It's also great for small boats, rolling boats, and off-grid applications, for the most seamless solar panel installation.


  • outdoor
  • car
  • backup power



Maximum power(Pmax) 100W
Open-circuit voltage(Voc) 23.3V
Voltage at Pmax(Vmp) 19.8V
Short-circuit current(Isc) 5.45A
Current at Pmax(Imp) 5.05A
Cells efficiency(%) 21.10%
The maximum system voltage 200V DC(IEC)
Power temperature coefficient -0.38%/℃
Voltage temperature coefficient -0.36%/℃
Current temperature coefficient 0.07%/℃
Output power tolerance ±3%
Operating temperature -20~75℃
Solar cell Monocrystalline solar cells
Weight 2.5kg/5.73lb
Module dimension 39.17*21.25*0.118in
No.of cells and connections 12(3*4)

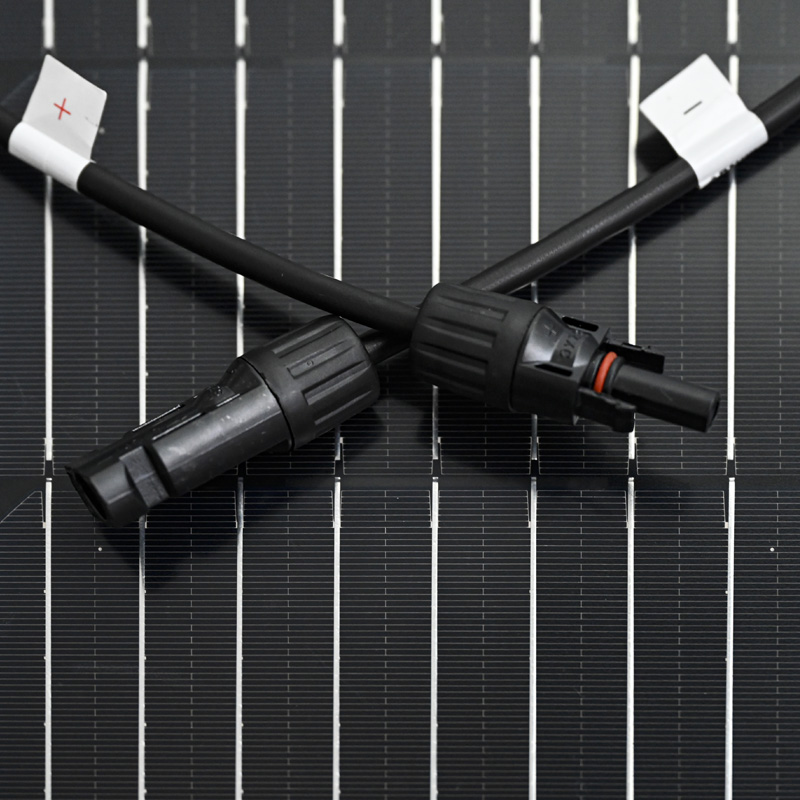

Product configuration A 10SQ050 diode; 500mm/2.5mm² photovoltaic single-core wire; MC4 connector
Packing 1 piece into a bubble bag, 1 piece in 1 inner carton, 10 pcs in an inner carton and an outer carton







Q:How many solar panels do I need to run an RV?

In most cases, the more the merrier, however an excessive amount of solar panels can actually waste energy. We recommend installing around 300 Watts of solar panels on the roof of an RV, which is generally around 3 flexible solar panels. This obviously depends on the battery size, but multiple solar panels can work to charge other aspects of the RV such as an air conditioner.



Q:Do flexible solar panels work in rain?

Most flexible solar panels are waterproof to work efficiently in extreme weather conditions. This is due to secure PET lamination. These solar panels also feature a non-stick coating on the surface, meaning that they are self-cleaning in the rain. This is when solar panels actually benefit from rainwater, as it helps to clean dirt or debris.
